Inclinometer
Construction Continued:
|
|

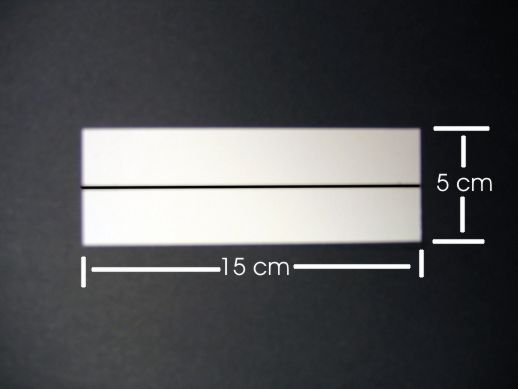

Cut a 5 cm X 15 cm card.
Draw a line down the center. |
|
|

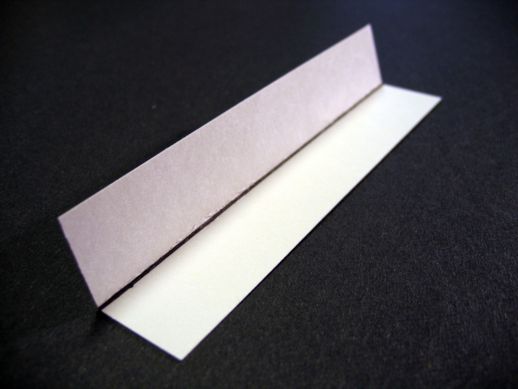

Fold card on line. |
|
|

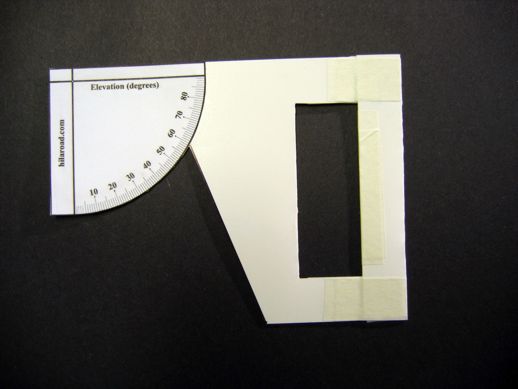

Tape and glue the handle to the main inclinometer card. |
|
|

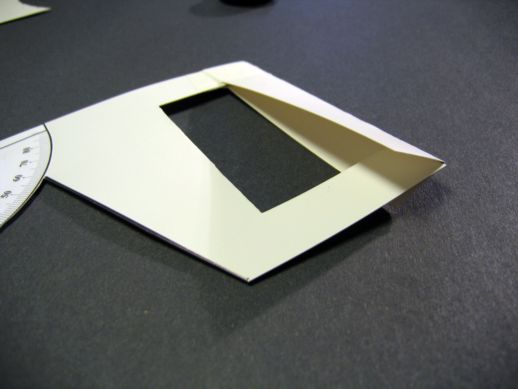

Secure the handle with tape. |
|
|

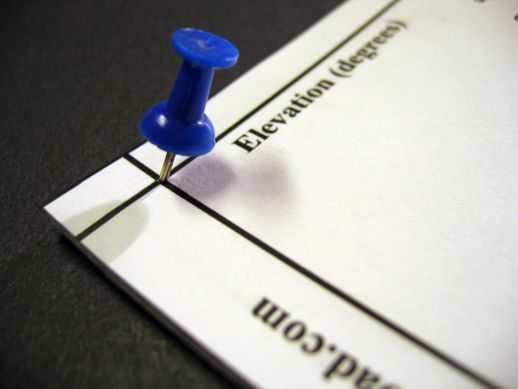

Using a pin, push a hole through the upper left corner. |
|
|

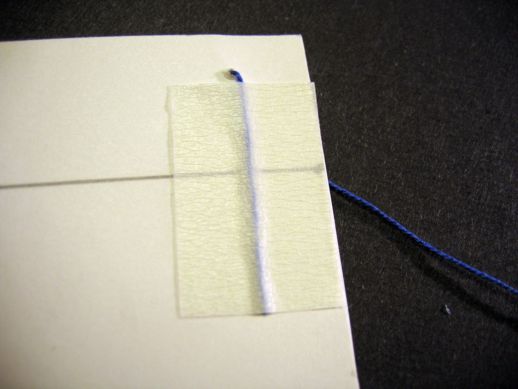

Push a string through the hole. Tape end of string to back of card. |
|
|

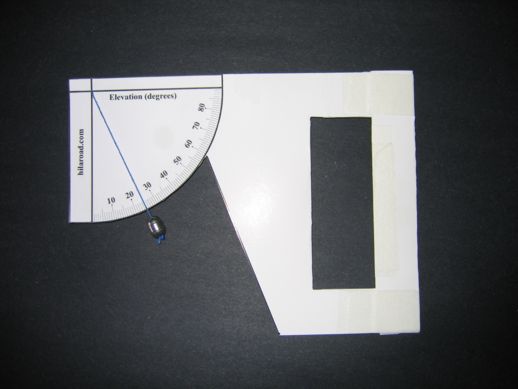

Attach a weight to the end of the
string.
Make sure it swings freely below the angle marks. A fishing weight works well. A penny, taped to the string, can also be used. |
|
|

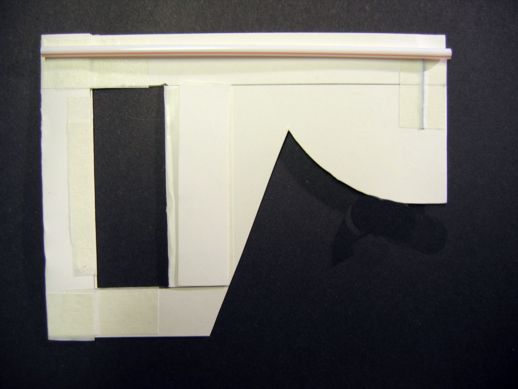

Lay a straw along the structure as
indicated.
The straw stiffens the inclinometer. |
|
|

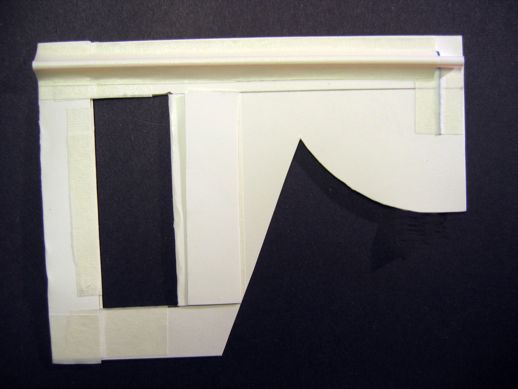

Tape the straw securely to the back of the inclinometer. |
