The Earth rotates on its axis every 23.93 hours, this
motion causes the apparent positions of the stars to shift through the
night
just as the sun appears to move through the sky during the day.
The Earth orbits the sun every 365.26 days,
because of
this motion, the stars that are visible at night, change throughout the
year.

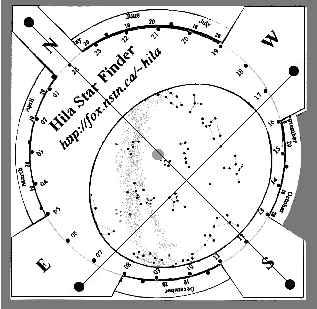

The Star Finder is a device that will allow you to
determine which stars and other objects in space, will be visible on a
given date
and time.
Video Instructions for using your
Starfinder:
Video - Using your Hila Starfinder
Video
- Orion a Winter Constellation
Video
- Ursa Major
Starfinder Construction
Supplies:
- scissors
- paper punch
- glue stick
- paper rivet
- heavy card (cereal box will do)
- thread
- masking tape
Procedure:
- print, then cut out star wheel, time circle
and key
- Note: when the PDF print dialog pops up,
choose "Page Scaling - None" or "Fit Actual Size"
- click
here for star wheel (PDF File)
- click
here for time circle (PDF File)
- click here for key
- 4
keys per page - classroom use
- cut a 19 cm square from heavy card (see next
line)
- Important,
check the dimension of the "Time Circle" some printers will print to a
different size then 19 cm.
- Adjust the size of the heavy card square
to match the printed size of the Time Circle.
-
- center star wheel on heavy card
- push paper rivet through center of star wheel
and card
-
- glue the corners of the time circle to the
heavy
card
- (make certain the star wheel is not glued)
- punch out the four holes on the time circle
- pull thread through the holes to create a
cross on the star wheel
- tape thread on back
-
- tape key to back of card
Using your Star Finder
- Rotate the star wheel to match the required
date and time.
- The edge of the oval opening represents the
horizon.
- N, E, W, and S indicate horizon direction.
- The thread cross indicates a spot directly
overhead.
An Example:
Select August 20 at 10:00 PM (22:00). Directly
overhead you will find the Constellation Cygnus, low in the South-West
is the Constellation Sagittarius, Hercules is high toward the West and
Ursa Major (the Big Dipper) is above the North-West horizon.
The planets, moon and sun are not included on
this chart because they have their own motion against the stars.
